Storage

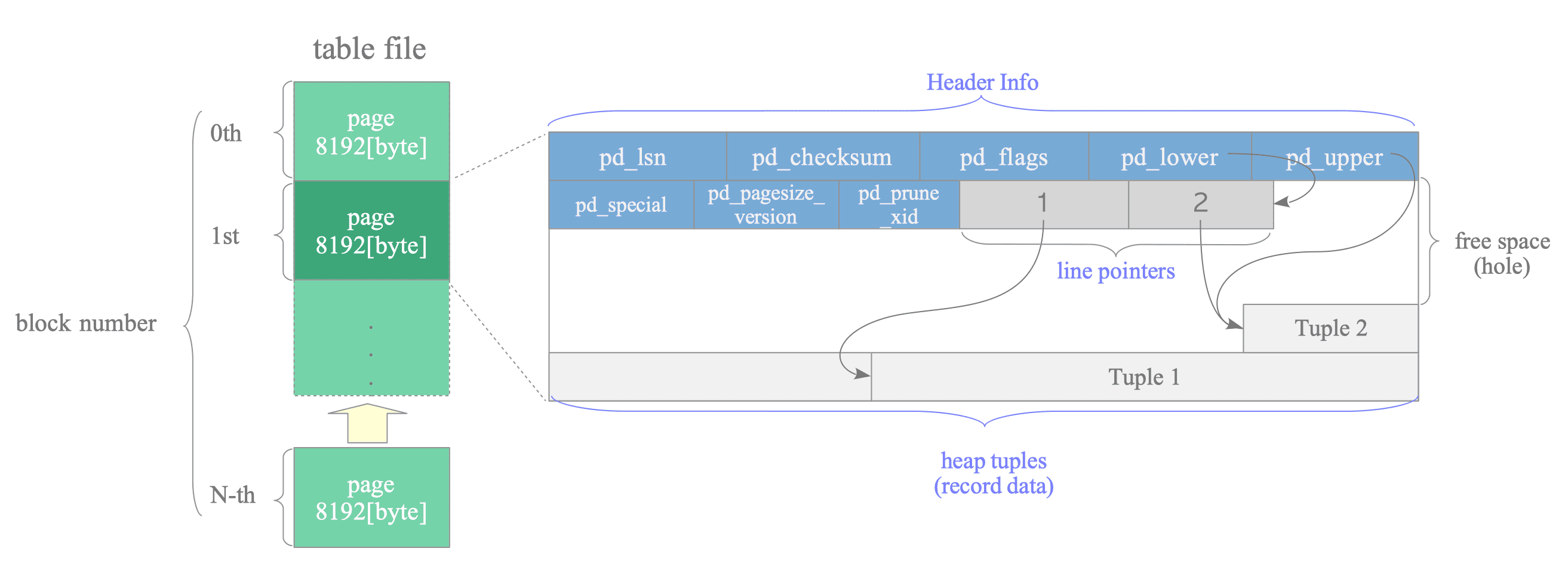

table and page

-- 空表初始文件 0 KB
create table tb (a int);

-- 插入第一行数据，文件扩展为 8 KB
insert into tb values (1), (2), (3);

pageinspect 介绍

• PostgreSQL 提供的一个内省扩展模块
• 允许用户通过 SQL 界面直接观察磁盘数据页（Page）的原始二进制内容及元数据结构
• 代码位于 postgres/contrib/pageinspect/，编译后使用

# 1. 自动获取PG服务端头文件目录（模糊化安装路径）
PG_INCLUDE=$(<PG_INSTALL_DIR>/bin/pg_config --includedir-server)

# 2. 编译扩展（指定PG版本+头文件路径）
make PG_CONFIG=<PG_INSTALL_DIR>/bin/pg_config CPPFLAGS="-I$PG_INCLUDE"

# 3. 安装扩展（指定PG版本）
make install PG_CONFIG=<PG_INSTALL_DIR>/bin/pg_config

psql 客户端运行

create extension pageinspect;

常用函数说明：

• get_raw_page: 从磁盘读取原始 8KB 数据块
• page_header: 查看 LSN、lower、upper 等页头元数据

• heap_page_items: 解析行指针和元组头（xmin, xmax）

• bt_page_items: 查看索引记录及其指向的元组地址

• heap_page_item_attrs: 解码字段内容

page

查询页头信息

select * from page_header(get_raw_page('tb', 0));
+-----------+----------+-------+-------+-------+---------+----------+---------+-----------+
|    lsn    | checksum | flags | lower | upper | special | pagesize | version | prune_xid |
+-----------+----------+-------+-------+-------+---------+----------+---------+-----------+
| 0/2926978 |        0 |     0 |    36 |  8096 |    8192 |     8192 |       4 |         0 |
+-----------+----------+-------+-------+-------+---------+----------+---------+-----------+

原因

源码结构

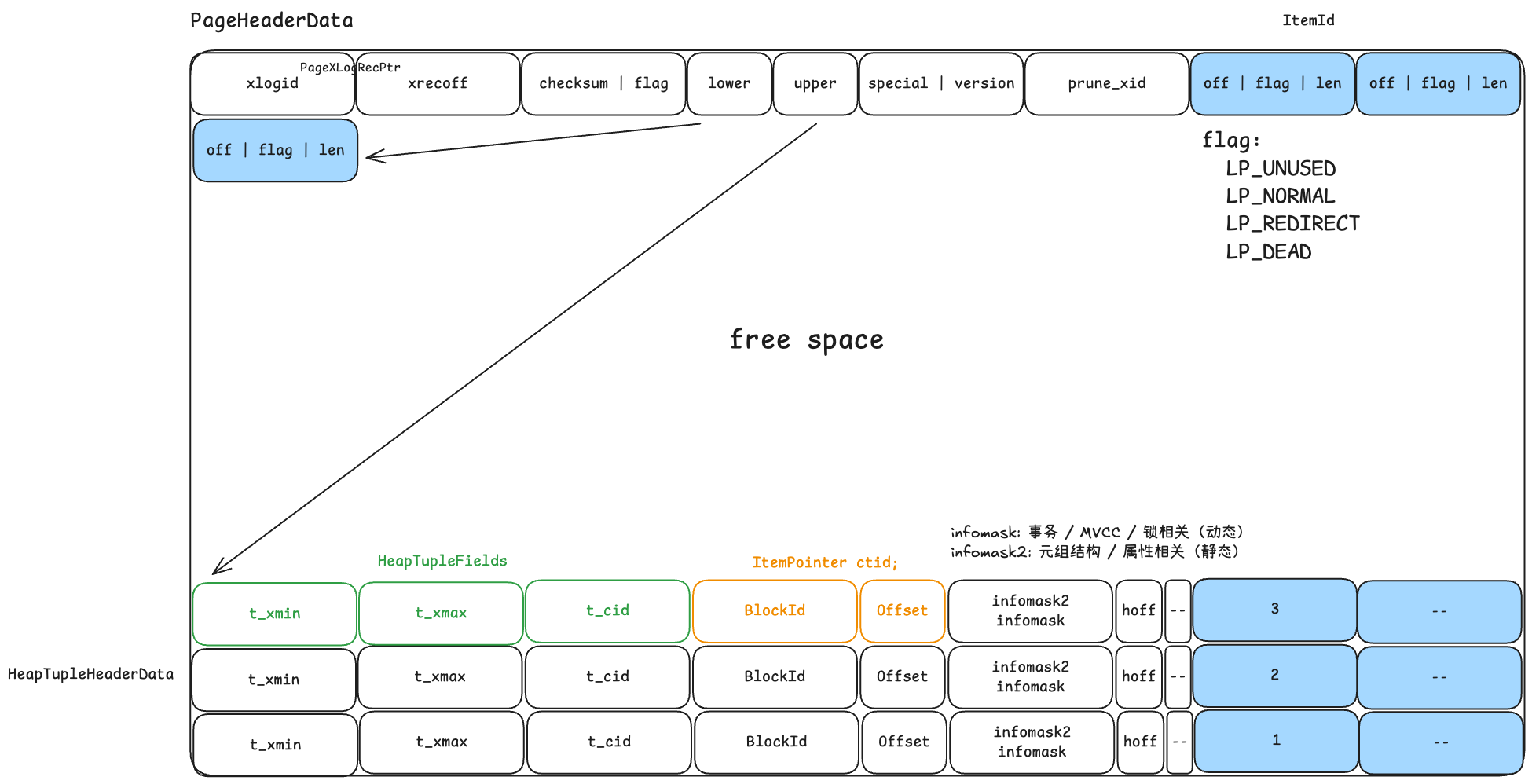

typedef struct PageHeaderData
{
    /* XXX LSN is member of *any* block, not only page-organized ones */
    PageXLogRecPtr pd_lsn;      /* LSN */
    uint16      pd_checksum;    /* checksum */
    uint16      pd_flags;       /* flag bits, see below */
    LocationIndex pd_lower;     /* offset to start of free space */
    LocationIndex pd_upper;     /* offset to end of free space */
    LocationIndex pd_special;   /* offset to start of special space */
    uint16      pd_pagesize_version;
    TransactionId pd_prune_xid; /* oldest prunable XID, or zero if none */
    ItemIdData  pd_linp[FLEXIBLE_ARRAY_MEMBER]; /* line pointer array */
} PageHeaderData;

tuple

select lp, lp_off, lp_flags, lp_len, t_xmin, t_xmax, t_field3, t_ctid, t_infomask from heap_page_items(get_raw_page('tb', 0));
+----+--------+----------+--------+--------+--------+----------+--------+------------+
| lp | lp_off | lp_flags | lp_len | t_xmin | t_xmax | t_field3 | t_ctid | t_infomask |
+----+--------+----------+--------+--------+--------+----------+--------+------------+
|  1 |   8160 |        1 |     28 |   1228 |      0 |        0 | (0,1)  |       2048 |
+----+--------+----------+--------+--------+--------+----------+--------+------------+

ItemIdData: 元组行指针 line pointer HeapTupleHeaderData: 元组在磁盘上的二进制布局信息

typedef struct ItemIdData
{
    unsigned    lp_off:15,      /* offset to tuple (from start of page) */
                lp_flags:2,     /* state of line pointer, see below */
                lp_len:15;      /* byte length of tuple */
} ItemIdData;

typedef struct HeapTupleFields
{
    TransactionId t_xmin;       /* inserting xact ID */
    TransactionId t_xmax;       /* deleting or locking xact ID */

    union
    {
        CommandId   t_cid;      /* inserting or deleting command ID, or both */
        TransactionId t_xvac;   /* old-style VACUUM FULL xact ID */
    }           t_field3;
} HeapTupleFields;

struct HeapTupleHeaderData
{
    union
    {
        HeapTupleFields t_heap;
        DatumTupleFields t_datum;
    }           t_choice;
    ItemPointerData t_ctid;     /* current TID of this or newer tuple */
    uint16      t_infomask2;    /* number of attributes + various flags */
    uint16      t_infomask;     /* various flag bits, see below */
    uint8       t_hoff;         /* sizeof header incl. bitmap, padding */
    /* ^ - 23 bytes - ^ */

    bits8       t_bits[FLEXIBLE_ARRAY_MEMBER];  /* bitmap of NULLs */

    /* MORE DATA FOLLOWS AT END OF STRUCT */
};
